The Astrocade Display Kiosk

Assembly Instructions


Welcome to the online Astrocade display kiosk assembly instructions. What you'll find here is the set of instructions used to build an Astrocade point-of-purchase display unit. Included are scanned pictures of the drawings of the Astrocade kiosk in various stages of assembly.

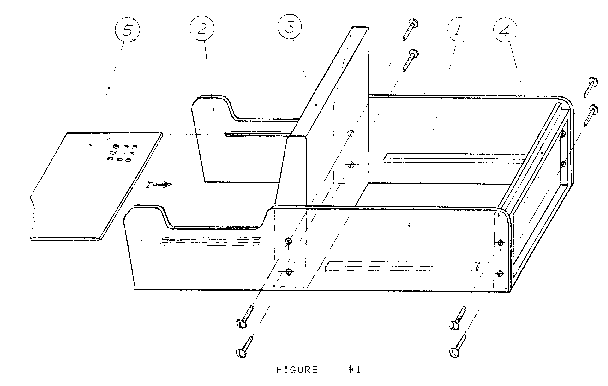

[Image of Figure 1]
Figure 1

  1. It will be easiest to start by assembling the display on its back. Using 8, 1/4-20x2" black truss head screws, attach sides (Parts 1 and 2) to TV shelf (Part 3) and bottom box (Part 4). See Figure 1.
  2. After removing protective paper covering, slide TV shield (Part 5) into plastic U-channel on inside wall of display. NOTE: The drilled hole-pattern in the TV shield should be located in the bottom right-hand side of the TV area

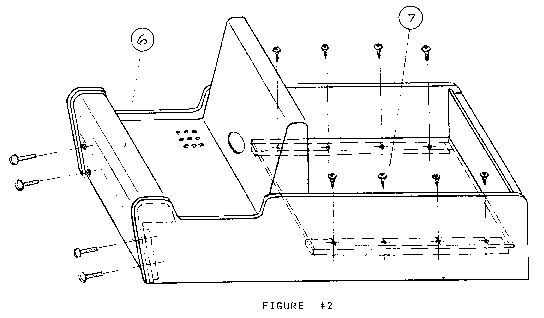

  3. [Image of Figure 2]
    Figure 2

  4. Using 4 1/4-20x2" black truss-head screws, attach light box (Part 6) to top of display. See Figure 2.
  5. Using 8 #6x3/4" pan-head phillips screws, attach back wall (Part 7) to front of lower wooden cleats.
  6. Stand display upright.

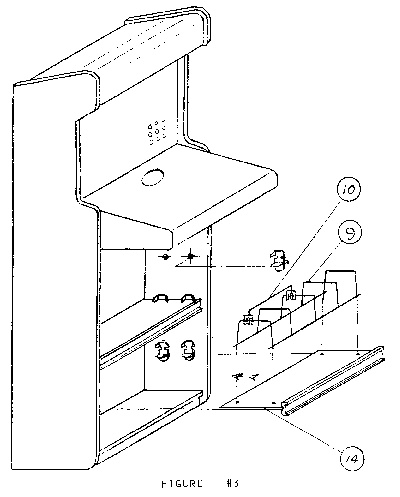

  7. [Image of Figure 3]
    Figure 3

  8. Insert 6 plastic shelf supports on inside of display. See Figure 3.
  9. Install Shelves (Part 14).
  10. Place wire dividers (Part 9) on shelves. Shelves are pre-drilled to hold the wire dividers in place.
  11. Insert short-stops (Part 10) as needed. The short-stops span two sections and will handle half or a quarter dozen cartridges.

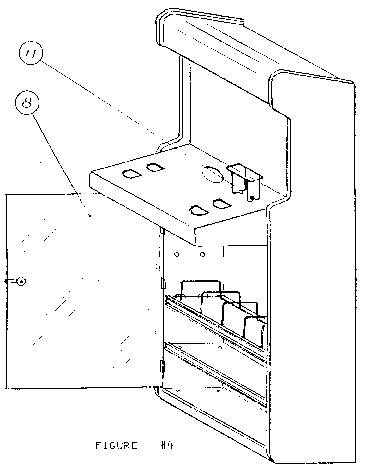

  12. [Image of Figure 4]
    Figure 4

  13. Hang door (Part 8) on hinge pins on left side of display. See Figure 4.
  14. Using 2 #8x3/8 pan-head phillips sheet metal screws, atach the literature pocket (Part 11) to the control shelf.
  15. Self-adhesive Cable Clips are provided to keep the light-box electric cord out of the way. Use the clips to direct the light cord down through the hole in the right rear corner of the TV shelf. The power strip has its own off/on switch and the cord from the strip comes out of the back of the unit to your power source.
